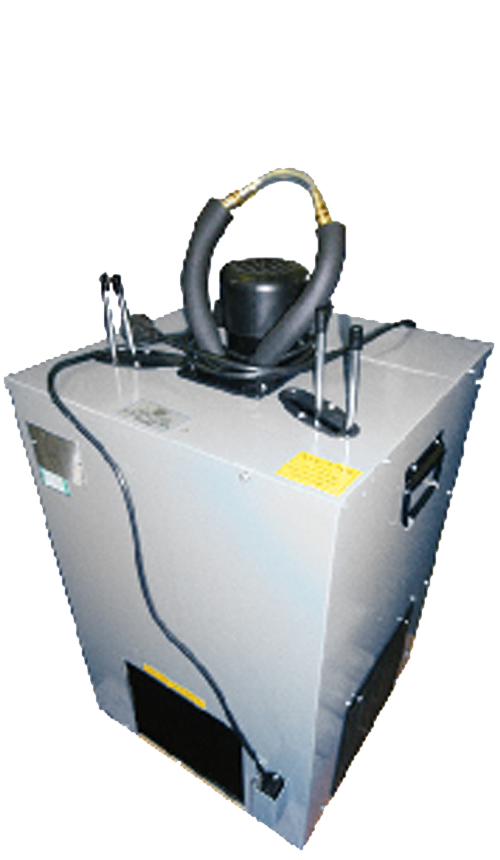

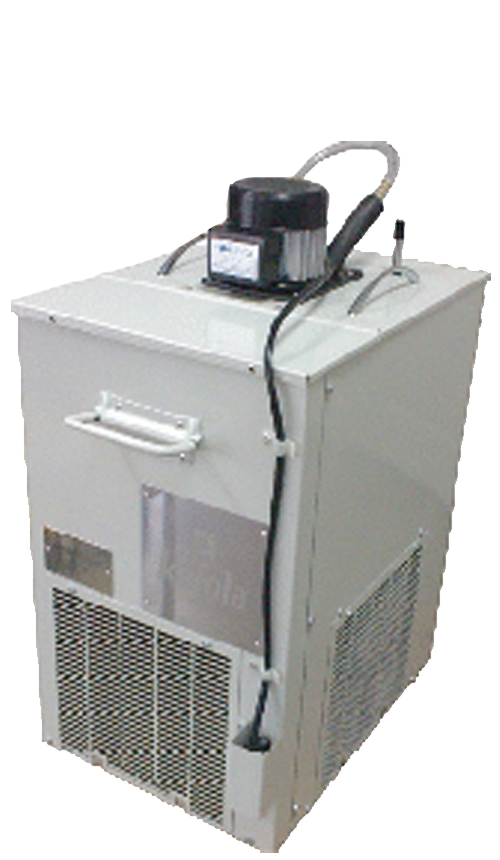

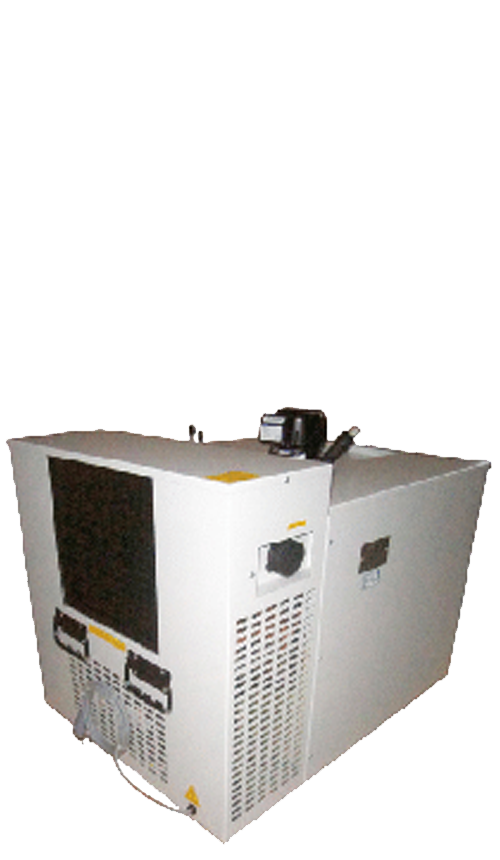

Undercounter Beer Chiller
| TECHNICAL SPECIFICATIONS | V40 | T50 | T75 | T80 | T90 | T90M | T120V | T120H | T160V | T160H | T220V | H300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal voltage, V | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Frequency, Hz | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Energy consumption, Watt | 310 | 310 | 352 | 465 | 442 | 445 | 450 | 412 | 650 | 730 | 683 | 817 |
| Cooler capacity, l/h | 40 | 50 | 65 | 75 | 90 | 90 | 100 | 100 | 120 | 120 | 200 | 240 |
| Water tank volume, l | 20,8 | 18 | 20 | 20 | 30 | 30 | 41,5 | 41,5 | 50 | 50 | 60 | 92 |
| Ice bank, kg | 7,5 | 7 | 8 | 10 | 12 | 12 | 17,5 | 17,5 | 23 | 23 | 30 | 38 |
| Pull-down time at the ambient temperature 24°C, h |
3,5 | 3,5 | 3 | 3 | 4 | 4 | 5,5 | 5,5 | 5,5 | 5,5 | 6,5 | 6,5 |
| Net weight, kg | 30 | 33 | 30,5 | 37 | 48 | 48 | 51 | 51 | 63 | 66 | 60 | 61 |
| Dimensions (unpacked), mm width length height |
310 450 600 |
450 490 565 |
360 395 695 |
360 395 700 |
415 440 680 |
415 440 680 |
435 450 745 |
725 415 500 |
470 480 845 |
830 490 575 |
550 610 880 |
790 560 605 |
| Product outlet temperature, °C | 2-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 |
| Refrigerant | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 | R 290 |
| Compressor, HP | 1/4 | 1/4 | 1/4 | 1/3 | 1/3 | 1/3-3/8 | 1/3-3/8 | 1/3-3/8 | 1/2 | 1/2 | 1/2 | 3/4 |
| Agitator-pump head, m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 12 |
